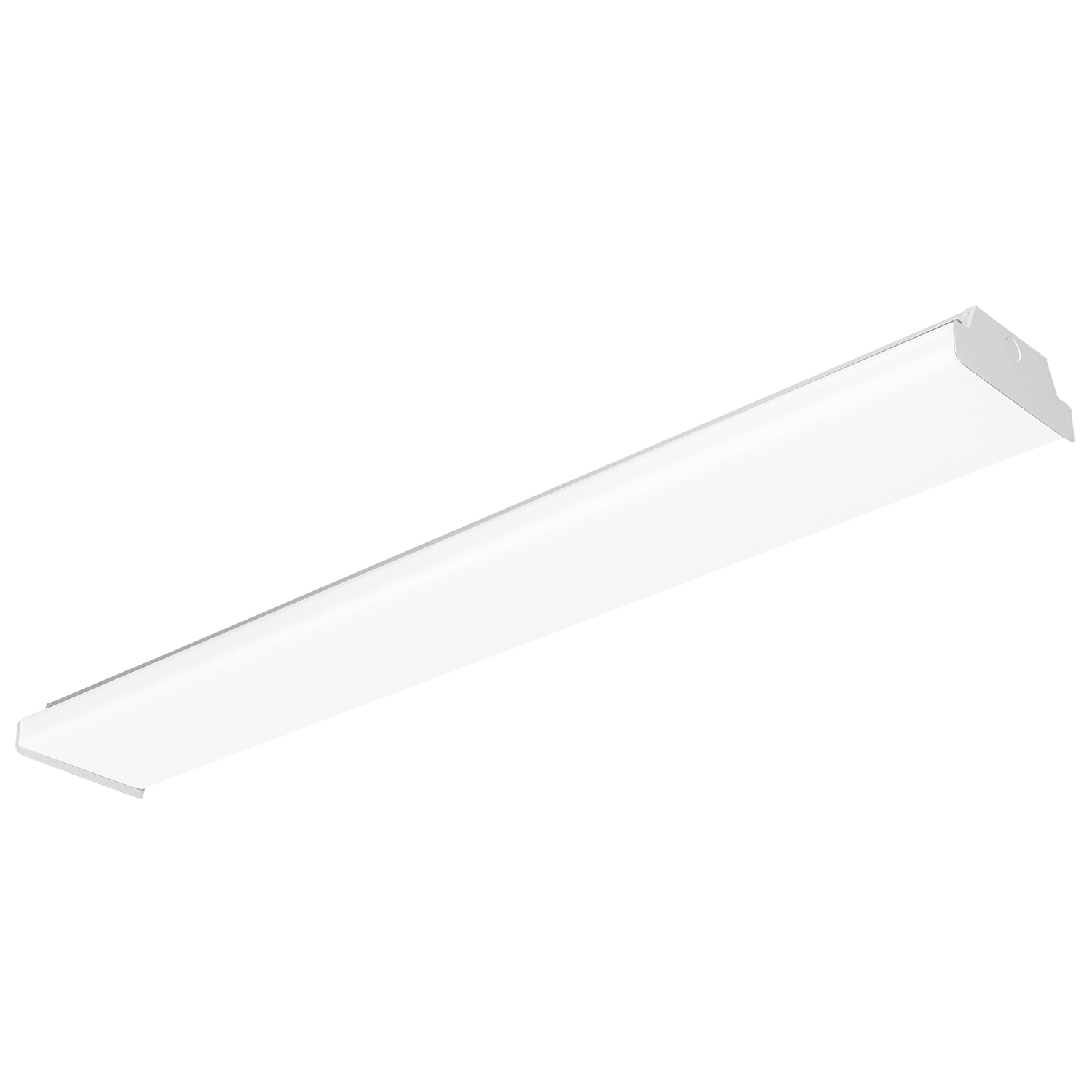

Sunlite 85292 4-Foot LED Wrap Around Fixture, Power Selectable 30W/35W/40W, 5360/4795/4200 Lms, Color Selectable 35K/40K/50K, 120-277 Volts, Dimmable, Energy Savings, UL Listed, Residential,Commercial Use

Replace the traditional fluorescent fixtures to Sunlite’s 48-Inch LED Wrap Around Fixture. These fixtures allow you to choose the color temperature at the time of installation. Select 3500K Neutral White, 4000K Cool White, 5000K Daylight or 6500K Daylight depending on your preference, using a switch within the fixture. A second switch allows you to select between wattages for different lumen outputs. Choose 30 watts, 35 watts, or 40 watts. With integrated LEDs and a long 50,000-hour life cycle, these fixtures will offer years of dependable, maintenance-free service and provide a high lumen output up to 5360. Estimated annual energy costs of $4.82 (Based on 3 Hrs/Day at $0.11/kWh). No ladders to climb or difficult-to-reach bulbs to replace. The fixture can also be dimmed (0-10V Dimmable) when installed with an LED-compatible dimmer. UL Listed for damp location installation. High lumen output is designed in warehouses, commercial garages, workshops, factories, retail spaces, or any commercial environment. DLC Listed for design and quality. For use on 120-277-volt electrical systems. Fixture Dimension: 2.8” H x 7.1” W x 47.7” L.

  • COMPACT DESIGN – These wraparound fixtures can be installed in tight spaces and offer ambient illumination for surface mount applications. A wide light distribution and excellent glare reduction are provided by its acrylic lens.
  • COLOR & WATTAGE SELECTABLE – These fixtures allow you to choose the color temperature at the time of installation. Select 3500K Neutral White, 4000K Cool White, 5000K Daylight or 6500K Daylight depending on your preference, using a switch within the fixture. A second switch allows you to select between wattages for different lumen outputs. Choose 30 watts, 35 watts, or 40 watts.
  • EASY TO INSTALL – This fixture is easy to install and can be mounted directly to the ceiling or pendant mounted (hanging chain not included). Installation Instructions & hardware is included.
  • ENERGY SAVINGS & DIMMABLE – With integrated LEDs and a long 50,000-hour life cycle, these fixtures will offer years of dependable, maintenance-free service and provide a high lumen output up to 5360. Estimated annual energy costs of $4.82 (Based on 3 Hrs/Day at $0.11/kWh). No ladders to climb or difficult-to-reach bulbs to replace. The fixture can also be dimmed (0-10V Dimmable) when installed with an LED-compatible dimmer.
  • UL LISTED – UL Listed for damp location installation. High lumen output is designed in warehouses, commercial garages, workshops, factories, retail spaces, or any commercial environment. DLC Listed for design and quality. For use on 120-277-volt electrical systems. Fixture Dimension: 2.8” H x 7.1” W x 47.7” L.
General Characteristics
Average rated hours

50000

Finish

White

Base

Integrated LED

Average life span years

45

Dimmable

Yes

Dimming type

0-10V Low Voltage

Dimming percentage

10-100%

Lens finish

White

Electrical Characteristics
Watts

30/35/40

Volts

120-277

Led chip manufacturer

SEOUL 3528

Power factor

0.98

Temperature

-20-50°

Light Characteristics
Lumens brightness

5360/4795/4200

Color Rendering Index CRI

80

Emitted color

CCT Selectable

Color temperature kelvin

35K/40K/50K

Beam angle

110°

Additional Features
Safety rating mark

UL Listed – Damp Location

Product Dimensions
Size

48"

Item dimension

(W) 47.7 (H) 2.8 (D) 7.1

Package dimension

(W) 3.1 (H) 7.5 (D) 48.7

Package weight

6.56

Product Data
Case unit rate

4

Item upc

653703852928

Warranty years

5

More
Material

Steel

Mounting

Surface

Fixture technology

LED

Use location

Indoor

Spec Sheet

IES File

Installation Instructions
