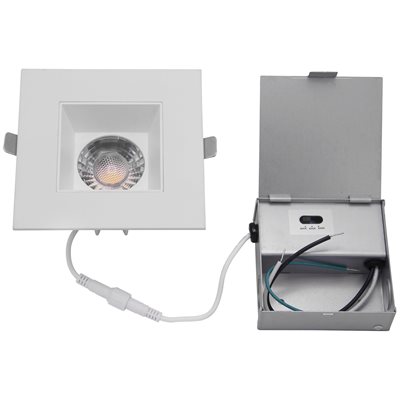

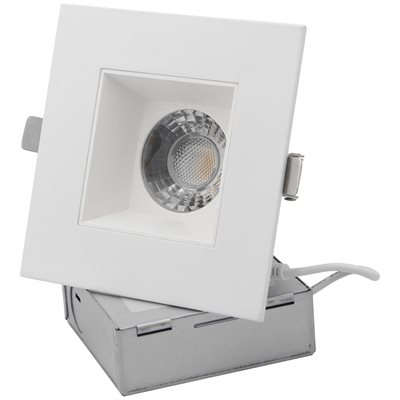

LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
Mouse over the image to zoom.
Double-tap and hold to zoom.
Click to Enlarge
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
Product Code:
85565-SU
Specifications
12 Watts
CCT Selectable
900 Lumens
4"
1
120 Volts
ETL - Damp Location
See all specs
Specifications
General Characteristic
Base:
Average Rated Hours:
35000
Dimmable:
1
Dimming Type:
Forward Phase (Triac or Incandescent)
Dimming Percentage:
5-100%
Fixture Material:
Aluminum
Lens Material:
Polycarbonate
Lens Finish:
Clear
Application:
Commercial, Residential
Electrical Characteristic
Watts:
12
Volts:
120
Equivalent Wattage:
75
LED Chip Manufacturer:
COB
Power Factor:
0.95
Temperature:
-4°F - 104°F
Lighting Characteristic
Lumens Brightness:
900
Color Rendering Index (CRI):
92
R9 Rating:
Emitted Color:
CCT Selectable
Color Temperature Kelvin:
30K/40K/50K
Beam Angle:
36°
Product Dimensions
Size:
4"
Item Dimension:
(W) 6.5 (H) 3 (D) 5.68
Package Dimension:
(W) 6.5 (H) 4.18 (D) 5.68
Package Weight:
1.43
Canopy Width In:
Cord Length:
4.3
Product Data
Case Unit Rate:
24.000000
Item UPC:
653703855653
Warranty Years:
5
Additional Features
Safety Rating Mark:
ETL - Damp Location
Safety Rated for USA:
1
Safety Rated for Canada:
1
DLC Approved:
0
DLC Classification:
ROHS Compliant:
1
Mercury Free:
1
IC Rated:
True
More Information
Shape:
Square
Number Of Lights:
1
Mounting:
Recessed
Fixture Technology:
LED
Use Location:
Indoor
Connect to View Price
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
LFX/DAD/4S/90CRI/12W/3SCT 4'' Square Deep Regressed Downlight Fixture 120V 30K-50K Dimmable
Download Files
IES File
Installation Instructions
Spec Sheet
IES File
Installation Instructions
Spec Sheet
