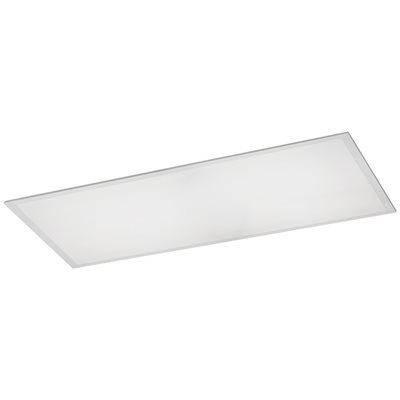

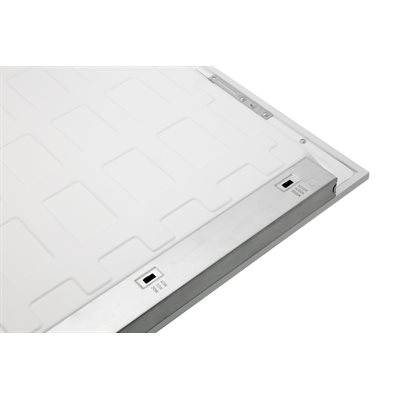

SF/BLI/FP/14/MW/83S/MV/WH/2PK 1x4 Backlit Lay-In Flat Panel, Wattage and CCT Selectable

Product Code: 85640-SU

Specifications

Specifications

General Characteristic

Base:
Average Rated Hours: 50000
Dimmable: 1
Dimming Type: 0-10V Low Voltage
Dimming Percentage: 10-100%
Fixture Material: Steel, Aluminum & PMMA
Lens Material: PMMA
Lens Finish: Diffuse
Application:

Electrical Characteristic

Watts: 20/30/40
Volts: 120-277
Equivalent Wattage:
LED Chip Manufacturer:
Power Factor: 0.9
Temperature: -4°F - 104°F

Lighting Characteristic

Lumens Brightness: 2500/3750/5000
Color Rendering Index (CRI): 80+
R9 Rating:
Emitted Color: CCT Selectable
Color Temperature Kelvin: 35K/40K/50K
Beam Angle: 120°

Product Dimensions

Size: 1x4
Item Dimension: (W) 47.8 (H) 1.4 (D) 11.9
Package Dimension: (W) (H) (D)
Package Weight:
Canopy Width In:
Cord Length:

Product Data

Case Unit Rate: 1.000000
Item UPC: BAR_EACH_UPC
Warranty Years:

Additional Features

Safety Rating Mark: UL Listed - Damp Location
Safety Rated for USA: 1
Safety Rated for Canada: 0
DLC Approved: 0
DLC Classification:
ROHS Compliant: 1
Mercury Free: 1
IC Rated: 0

More Information

Shape:
Number Of Lights:
Mounting: Recessed
Fixture Technology: LED
Use Location: Indoor
Connect to View Price
Download Files
Spec Sheet
Spec Sheet

You May Also Be Interested In

SF/CK/LN/72/183 Conduit Kit 6ft 18/3 Stranded in 1/2in Flex with Snap-In Connector
Code: 85647-SU
Connect to View Price
SF/BLI/FP/14/FLK Flange Kit for Recessed Mounting 1x4 Flat Panel SF/BLI/FP
Code: 85650-SU
Connect to View Price
LFX/FLAT/1X4/RECESSED WHITE FRAME KIT FOR FLT PANEL for 85640-SU
Code: 85087-SU
Connect to View Price

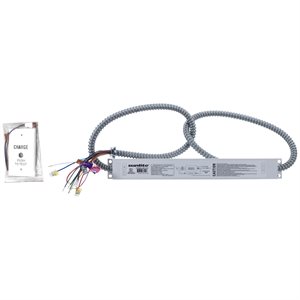

LED EM Inverter with Conduit 15W 120-277Vac
