PLD/LED/HY/2P/9.5W/3SCT Type A+B 120-277V CCT Selectable

Mouse over the image to zoom. Double-tap and hold to zoom.

PLD/LED/HY/2P/9.5W/3SCT Type A+B 120-277V CCT Selectable

Product Code: 88808-SU

Specifications

Pack
10 Watts
26 Eq Wattage
30K/40K/50K
1050 Lumens
0
120-277 Volts
G24D Base
UL Listed - Damp Location
See all specs

Specifications

General Characteristic

Bulb Shape:	PLD
Nanometer:	N/A
ANSI Code:	G24D
Average Rated Hours:	50000
Bulb Finish:	Frost
Base:	G24D 2-Pin LED BASE
Ingress Protection:
Dimmable:	0
Dimming Type:	Not Dimmable

Electrical Characteristic

Amps:
Watts:	10
Volts:	120-277
Equivalent Wattage:	26
LED Chip Manufacturer:
Power Factor:	0.90@120VAC
Temperature:	-20-45C
Filament:

Lighting Characteristic

Lumens Brightness:	1050
CRI:	80

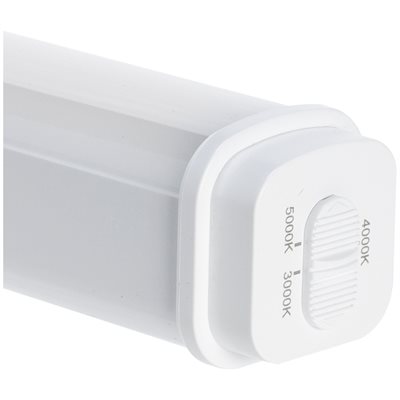

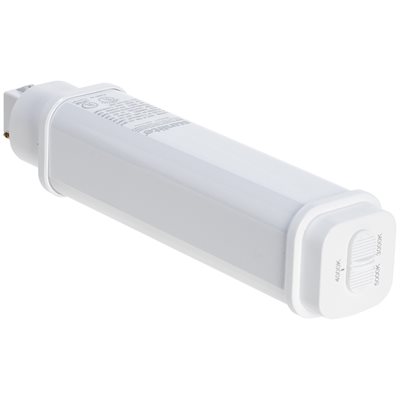

Emitted Color:	CCT Selectable
Color temperature kelvin:	30K/40K/50K
Beam Angle:	120
Coating:

Product Dimensions

Mol:
Diameter inches:
Item Dimension:	(W) (H) (D)
Package Dimension:	(W) (H) (D)
Package Weight (Pounds):
Size:
Item Weight (Pounds):

Product Data

Case Unit Rate:	12.000000
Pack Size:
Item UPC:	653703888088
Warranty Years:
Package Type:

Additional Features

Safety Rating Mark:	UL Listed - Damp Location
UL rated enclosed fixtures:	0
Safety Rated for USA:	1
Safety Rated for USA:	1
DLC Classification:
Rohs Compliant:	0
Mercury Free:	0
CE Certified:	0

More Information

Shape:
Use location:	Indoor

Connect to View Price

Download Files
