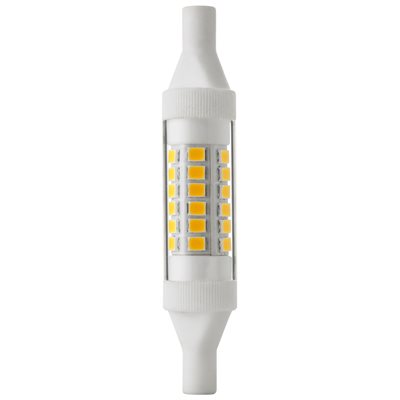

R7S/LED/4.5W/78MM/T5/30K/CD2 DBL ENDED R7S SUN

Mouse over the image to zoom. Double-tap and hold to zoom.

R7S/LED/4.5W/78MM/T5/30K/CD2 DBL ENDED R7S SUN

Product Code: 81015-SU

Specifications

2 Pack
4.5 Watts
30 Eq Wattage
Warm White
370 Lumens
False
120 Volts
UL Listed - Damp Location
See all specs

Specifications

General Characteristic

Bulb Shape:	T5
Nanometer:
ANSI Code:
Average Rated Hours:	10000
Bulb Finish:	Clear
Base:	Recessed Single Contact
Ingress Protection:
Dimmable:	False
Dimming Type:

Electrical Characteristic

Amps:
Watts:	4.5
Volts:	120
Equivalent Wattage:	30
LED Chip Manufacturer:	2835
Power Factor:	0.5
Temperature:	- 20? to + 45?
Filament:

Lighting Characteristic

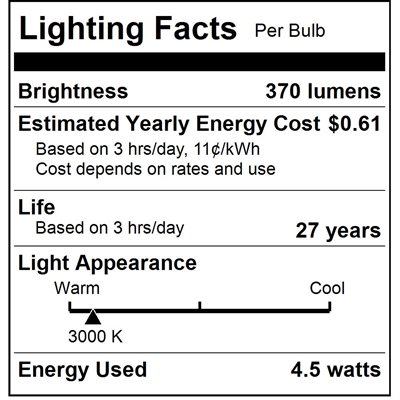

Lumens Brightness:	370
CRI:	80
Emitted Color:	Warm White
Color temperature kelvin:	3000K
Beam Angle:	360°
Coating:

Product Dimensions

Mol:	3.1
Diameter inches:	0.6
Item Dimension:	(W) (H) (D)
Package Dimension:	(W) 4.620 (H) 7.620 (D) 0.350
Package Weight (Pounds):	0.230
Size:
Item Weight (Pounds):

Product Data

Case Unit Rate:	12.000000
Pack Size:	2
Item UPC:	653703810157
Warranty Years:	2.5
Package Type:	Card

Additional Features

Safety Rating Mark:	UL Listed - Damp Location
UL rated enclosed fixtures:	False
Safety Rated for USA:	True
Safety Rated for USA:	True
DLC Classification:
Rohs Compliant:	False
Mercury Free:	False
CE Certified:	False

More Information

Shape:	Tube
Use location:
