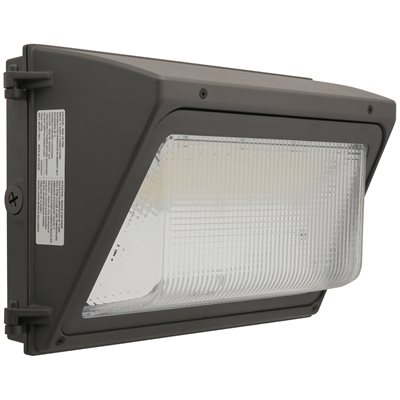

LFX/WP/SCT/HMW/MV/PC/G3 60W/90W/100W/120W LED WALL PACK DOWN SUNLITE with PHOTO SENSOR

Mouse over the image to zoom. Double-tap and hold to zoom.

LFX/WP/SCT/HMW/MV/PC/G3 60W/90W/100W/120W LED WALL PACK DOWN SUNLITE with PHOTO SENSOR

Product Code: 08563-SU

Specifications

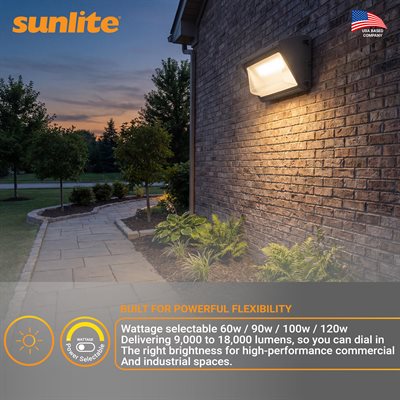

120/100/90/60 Watts
CCT Selectable
9000/13500/15000/18000 Lumens
14 Inch
1
120-277 Volts
UL Listed - Wet Location
1
See all specs

Specifications

General Characteristic

Base:
Average Rated Hours:	50000
Dimmable:	1
Dimming Type:	0-10V Low Voltage
Dimming Percentage:
Fixture Material:	Die-Cast Aluminum
Lens Material:	Polycarbonate
Lens Finish:
Application:

Electrical Characteristic

Watts:	120/100/90/60
Volts:	120-277
Equivalent Wattage:
LED Chip Manufacturer:
Power Factor:	=0.90
Temperature:	-40°F to 113°F

Lighting Characteristic

Lumens Brightness:	9000/13500/15000/18000
Color Rendering Index (CRI):	80
R9 Rating:
Emitted Color:	CCT Selectable
Color Temperature Kelvin:	3000K/4000K/5000K
Beam Angle:	90°

Product Dimensions

Size:	14 Inch

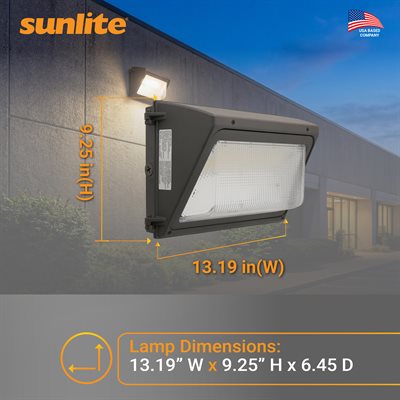

Item Dimension:	(W) 13.19 (H) 9.25 (D) 6.45
Package Dimension:	(W) (H) (D)
Package Weight:
Canopy Width In:
Cord Length:

Product Data

Case Unit Rate:	1.000000
Item UPC:	BAR_EACH_UPC
Warranty Years:	5

Additional Features

Safety Rating Mark:	UL Listed - Wet Location
Safety Rated for USA:	0
Safety Rated for Canada:	0
DLC Approved:	0
DLC Classification:
ROHS Compliant:	0
Mercury Free:	0
IC Rated:	0

More Information

Shape:
Number Of Lights:

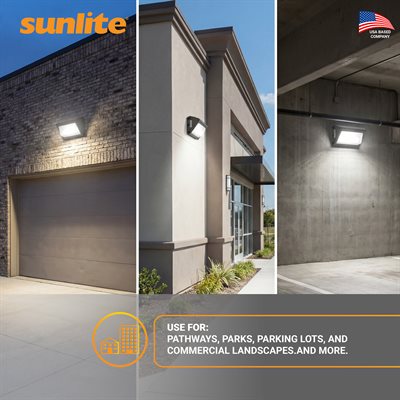

Mounting:	Wall
Fixture Technology:	LED
Use Location:	Outdoor
