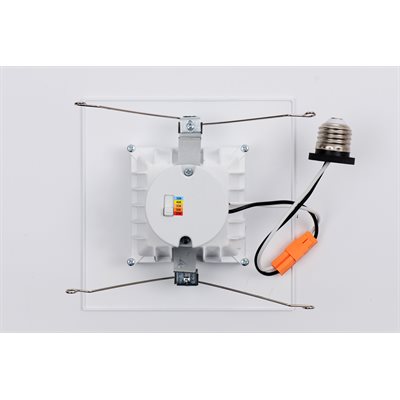

LFX/RDL/5/6S/14W/SCT 5/6" Square Retrofit Downlight Fixture 90CRI 120V 27K/30K/35K/40K/50K Dimmable

Mouse over the image to zoom. Double-tap and hold to zoom.

LFX/RDL/5/6S/14W/SCT 5/6" Square Retrofit Downlight Fixture 90CRI 120V 27K/30K/35K/40K/50K Dimmable

Product Code: 89129-SU

Specifications

14 Watts
CCT Selectable
1100 Lumens
5"/6"
True
120 Volts
ETL Listed - Wet Location
See all specs

Specifications

General Characteristic

Base:	E26
Average Rated Hours:	50000
Dimmable:	True
Dimming Type:	Forward Phase (Triac or Incandescent)
Dimming Percentage:	10-100%
Fixture Material:	Aluminum
Lens Material:
Lens Finish:	White
Application:	Commercial, Residential

Electrical Characteristic

Watts:	14
Volts:	120
Equivalent Wattage:
LED Chip Manufacturer:	bridgelux 2835
Power Factor:	0.9
Temperature:	-20~40?

Lighting Characteristic

Lumens Brightness:	1100
Color Rendering Index (CRI):	90
R9 Rating:
Emitted Color:	CCT Selectable
Color Temperature Kelvin:	27K/30K/35K/40K/50K
Beam Angle:	110°

Product Dimensions

Size:	5"/6"
Item Dimension:	(W) 6 (H) 1.06 (D) 6
Package Dimension:	(W) 8 (H) 3.38 (D) 7.75
Package Weight:	1.21
Canopy Width In:
Cord Length:

Product Data

Case Unit Rate:	12.000000
Item UPC:	653703891293
Warranty Years:	5

Additional Features

Safety Rating Mark:	ETL Listed - Wet Location
Safety Rated for USA:	1
Safety Rated for Canada:	1
DLC Approved:	False
DLC Classification:
ROHS Compliant:	0
Mercury Free:	1
IC Rated:	0

More Information

Shape:	Square
Number Of Lights:	1
Mounting:	Recessed
Fixture Technology:	LED
Use Location:	Indoor

Connect to View Price

Download Files
